NPS 100C-21 100kW
Perfect for higher wind speeds
The NPS 100C-21 is a class IIA wind turbine designed for optimal performance in higher wind speeds. The turbine can withstand gusts of up to 59.5m/s.
Reliable

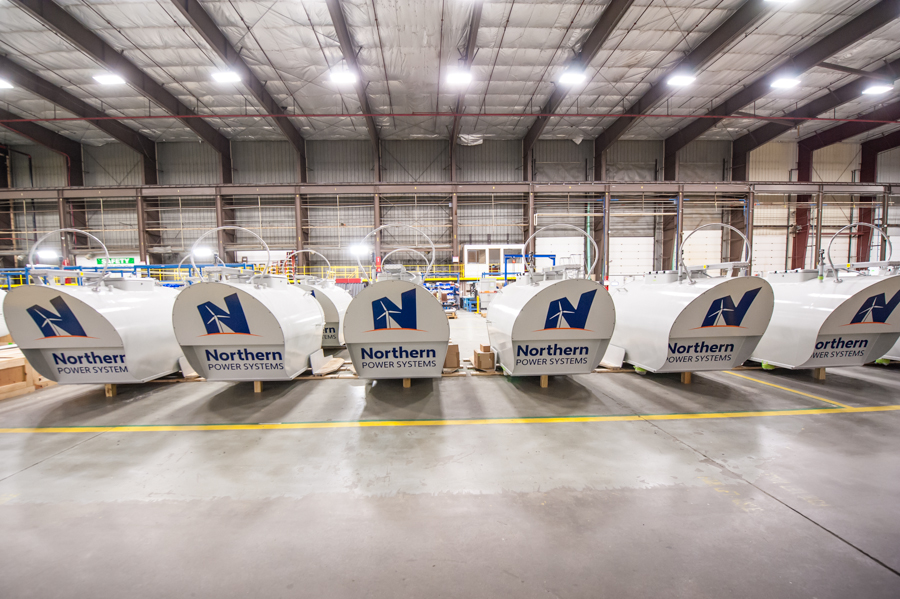

The NPS uses direct-drive technology and requires no gear box. It therefore uses fewer moving parts, and according to Northern Power Systems is amongst the most reliable turbines in its class.
Planning friendly

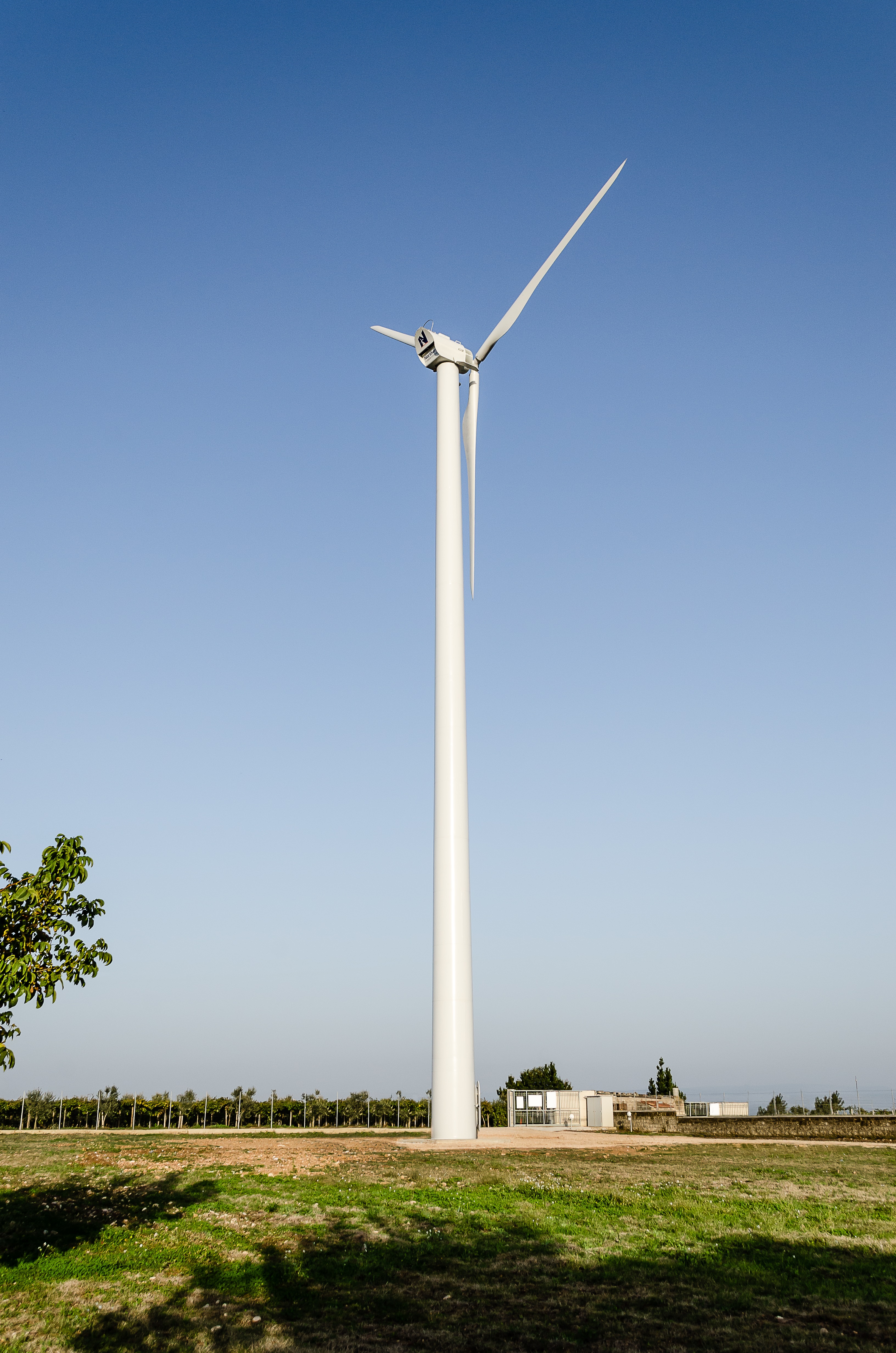

With 22m, 29m and 37m tower options available, the NPS 100C has a range of solutions to meet maximum tip height planning requirements in your area. A new colour has been used on the tower and nacelle to minimise visual impact.
Maximise your income
The 100kW generator takes full advantage of the maximum output capacity within the <100kW Feed-in-Tariff bracket, creating the best returns possible over its 20 year lifespan.
Simple grid connections
NPS turbines come with a 400-volt transformer and RTU data logger as standard as well as a utility grid protective relay interface (G59/2). The turbine produces electricity at an even frequency, simplifying your grid connection.
10-Year Performance Guarantee Programme (PGP)
Northern Power offer a 10 year PGP. The programme covers O&M costs, spare parts, labour and expenses for the NPS 100C.
The cost of the guarantee is calculated based on the performance of the turbine, and is backed by availability and power curve guarantees. This means that NPS have a vested financial interest in ensuring your machine is operating at optimum performance for the duration of its lifespan.
Also included in PGP:
• As well as being monitored by the Earthmill team, the turbine will have 24/7 management from the NPS operations teams in the UK, Italy and the U.S.
• Global Spares Management Programme: NPS offers a rapid spare-part delivery service for same or next day delivery which minimises ‘down time’ in instances when maintenance is required.
The NPS 100C-21 is a class IIA machine with a 21m rotor diameter designed for maximising annual energy production (AEP) at sites with an average annual wind speed of over 7.5m/s.
The NPS 100C-21 is a direct-drive machine which uses magnets instead of a gear box to enable the output to be ‘dialled back’ to a lesser amount. The model has proven ideal for areas with grid restraints.
The output can readjusted back to its full potential at anytime if upgrades are made to the grid infrastructure at a later date.

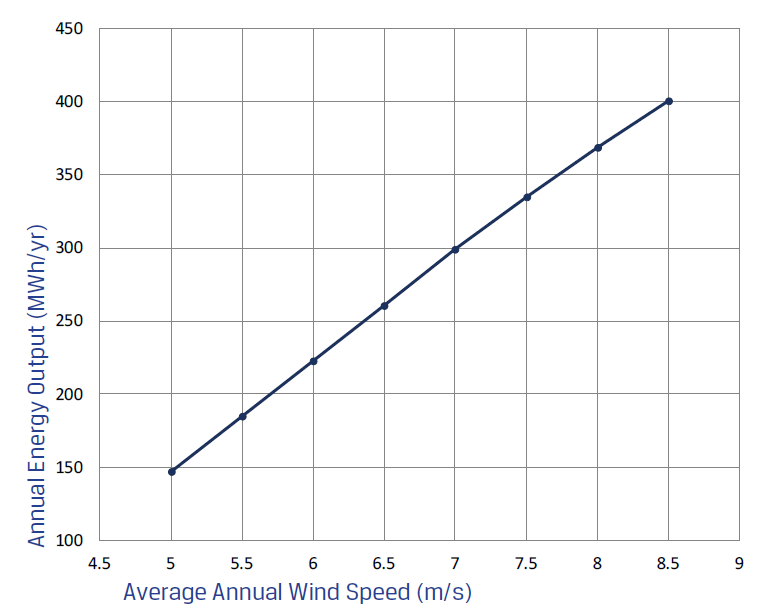

The graphs on the right show the power curve and AEP for the NPS 100C-21 at full output.
“From start to finish throughout planning, installation and the turbine’s performance afterwards I have been delighted with the Earthmill team”
Graham Fraser, Aberdeenshire
General Configuration
Model Northern Power® 100C-21
Design Class IEC WTGS II/A air density 1.225 Kg/m3, average annual wind below 8.5 m/s, 50-yr peak gust below 59.2 m/s
Design Life 20 years
Rotor Diameter 20.7 m
Tower Type Tubular steel monopole
Hub Height 37 m, 29 m,
Orientarion Upwind, 3 blade
Yaw System Active yaw drive with wind direction/speed sensors and automatic cable unwind
Power Regulation Variable speed, stall control
Certification CE compliant, CEI 0-21
Performance
Rated Wind Speed 15 m/s
Cut-in Wind Speed 3 m/s
Cut-out Wind Speed 25 m/s
Extreme Wind Speed 59.5 m/s
Weight
Rotor (24 m) & Nacelle 6,500 kg
Tower (37 m) 12,000 kg
Drive Train
Gearbox Type No gearbox (direct drive)
Generator Type Permanent magnet
Braking System
Redundant Braking System (per IEC 61400-1ed3) Generator dynamic brake and multiple
hydraulic calipers
Control System
Controller Type DSP-based multiprocessor embedded platform
Converter Type Pulse-width modulated IGBT frequency converter
Monitoring System SmartView® remote monitoring system, ModBus TCP
Electrical System
Rated Electrical Power 100 kW, 3 Phase, 400 VAC, 50 Hz
Power Factor Set point adjustable between 0.9 lagging and 0.9 leading
Reactive Power +/- 45 kVAR
Grid Interconnect Utility approved protective relay included
Noise
Apparent Noise Level 50 dBa at 50 metres from nacelle
Electrical Specifications
Temperature Range Operational -20°C to 40°C
Temperature Range Storage -30°C to 50°C
Lightning Protection Receptors in blades, nacelle lightning rod and electrical surge protection
