Endurance X35 225kW
Power Production
Specification


Endurance X35 225kW

The most productive wind turbine in its class

The 225kW X35 incorporates a 35m diameter rotor. The large swept area makes it the most productive turbine in its class  for sites with a wind speed lower 7.5m/s.

The original X-series design by Danish company Norwin, has now been generating clean energy around the globe for over 25 years. Having stood the test time, Endurance have added the latest technological refinements building on the proven design. The X-series is now manufactured in Endurance’s UK factory in the Midlands.

Despite an impressive power yield capability, with 30m & 40m tower height options, the X-35 still falls within farm-scale planning parameters, unlike larger 500kw+ turbines which usually require higher strategic level planning applications.

The X35 is best suited to farms, commercial and industrial sites with a lower average annual wind speed and high energy requirements.



X35 Testimonial

“Being in the Midlands we have relatively low wind speeds at our site but the big blades of the X35 made our site financially viable”

David Spendlove, Derbyshire Farmer

Power Production

The Endurance X-35 is a 225kW wind turbine with a 35m rotor diameter.  The large swept area – along with the efficiency of the generator – means that the X-35 offers a surprisingly high return even in areas with only a modest wind speed. The large rotor and low-level resistance generator allow the turbine to start producing energy at a wind speed of just 3.5 m/s.

A 225kW wind turbine is an ideal solution for landowners wishing to reap a higher power yield. Despite an impressive power yield capability, the X-35 still falls within farm-scale planning parameters, unlike larger 500kw+ turbines which usually require higher strategic level planning applications.

The AEP table allows you to see what the annual energy production is likely to be – based on the wind speed of your site.  If you aren’t sure what your wind speed is you can find out by requesting a complimentary site assessment.



“The high electricity cost of running a dairy has prevented us from expanding. But the wind turbine will allow us to invest in doubling our capacity, hiring more local labour and buying more local supplies. ”

 Matthew Rowe, Cornish Farmer

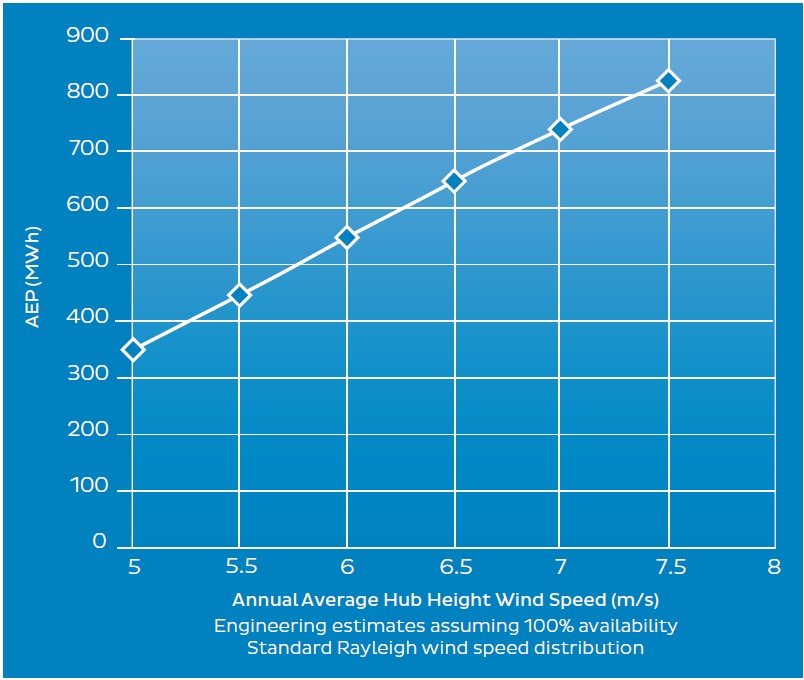

Power Curve

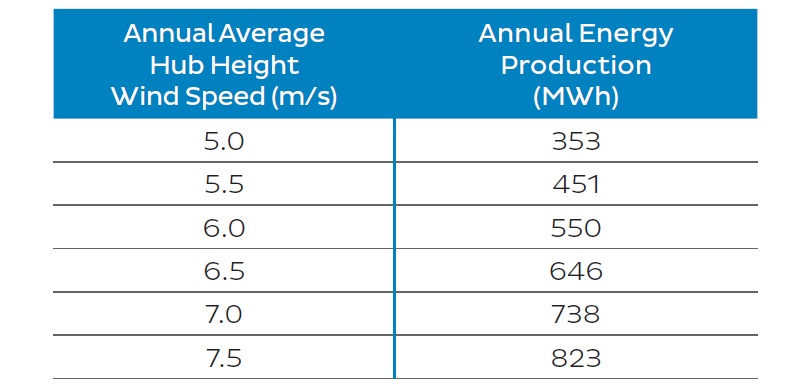

Annual Energy Production (AEP)

 Annual Energy Production Chart



X Series Specs X35 225kW

Turbine

Configuration Three blade, horizontal axis, downwind
Rated Power 225kW
Application Direct Grid Tie
Rotor Speed 30.8 RPM
IEC 61400-1 Turbine Class: IIIA
Maximum Average Wind Speed 7.5m/s
Survival Wind Speed 52.5 m/s or 117mph
Cutout Wind Speed 20m/s

Rotor

Rotor Diameter 35m
Swept Area 962m2
Blade Material Fiberglass Composite
Power Regulation Stall control

Generator

Generator Type Asynchronous, Induction
Configuration 3-phase, 400 VAC, 50 Hz



Brake & Safety Systems

Main Brake System Turnable Blade Tips
Secondary System Fail-Safe mechanical brake
Automatic Shutdown triggered by High wind speed, grid failure, over-speed, all other fault conditions

Controls

Control System User Interface Programmable Logic Controller (PLC) and ERIC™ Endurance Remote Interface Centre

Towers

Available Hub Heights 30.5m and 40.2m
Tower Type Free Standing Monopole, Internal Tower Ladder, Safe climbing system

Warranty

Standard – 5 year parts and labour,
Optional Extended warranty and performance warranties
